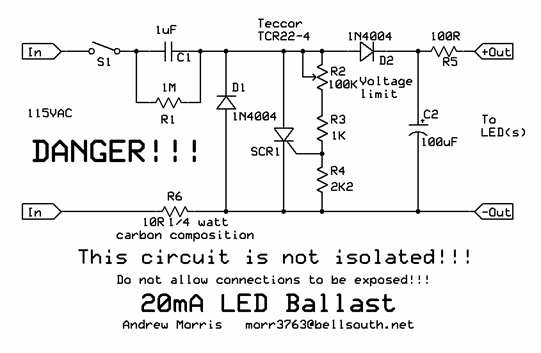

20mA LED Ballast
I use this circuit for general use to power white LEDs, like a headset light I use on my
desk and a keyboard light for my computer. I built it into a tiny Radio Shack project box
(270-288), which they no longer sell. I put heat-shrink tubing around the female output
connector (RS P/N 273-1743), so that the contacts are not exposed, but you can still plug
and unplug it.
Note that if the voltage
limit is set too high, the LED may blow out when the LED is first connected to the
energized ballast circuit. Set R2 to minimum resistance before the first time the circuit
is powered up with the intended load on it. Bring the voltage limit up (increase the
resistance of R2) just past the point where the LED(s) doesn’t get any brighter.
SCR1 and R2 thru R4 can be
deleted if the LED(s) will be permanently connected. Without the SCR, C2 will EXPLODE if
the circuit is powered up and unloaded. |
