12v Light/Dark Lamp Switch
At night, this circuit will route current to a 12v lamp, turning it on.

Click on Drawing Below to view PDF version of Schematic

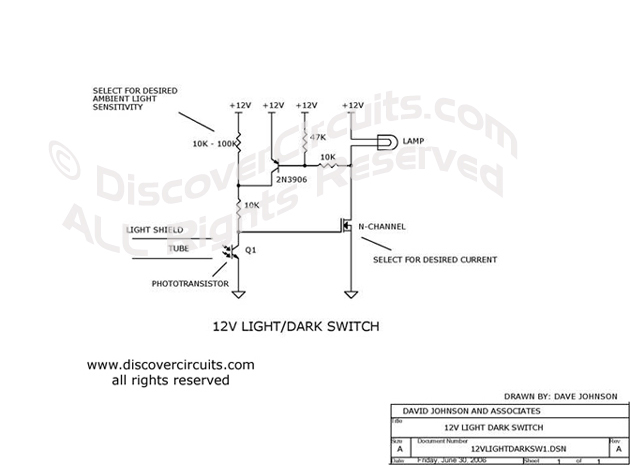

12V Light / Dark Switch Circuit designed by David Johnson, P.E. (June 30, 2006)

Lamp Controls     Switch Circuits
