Dark Activated 12v Power Supply Switch

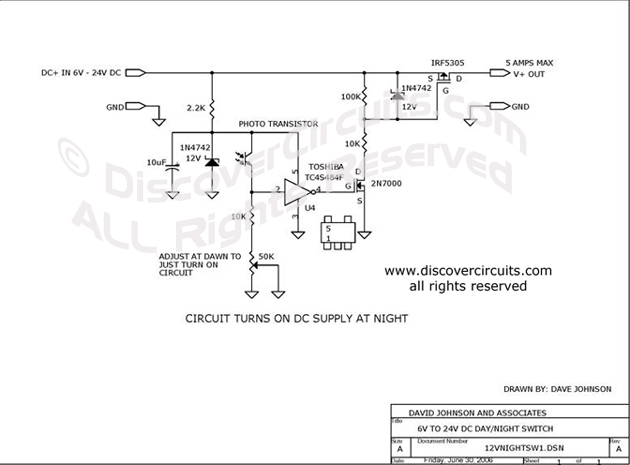

Using an inexpensive phototransistor, this circuit switches 12v to 24v power to a load, whenever the sun goes down.

Click on Drawing Below to view PDF version of Schematic

Circuit 6V to 24V DC Day / Night Switch Circuit designed by David A. Johnson, P.E. (June 30, 2006)
