1.5V LED FLASHER VERSION B
To squeeze even more energy from a alkaline battery cell, this circuit adds two transistors to a circuit similar to the above design to boost the efficiency. A small 1.5 volt alkaline N cell should flash the LED for a full year. It too uses a "charge pump" technique to provide a LED the needed voltage.

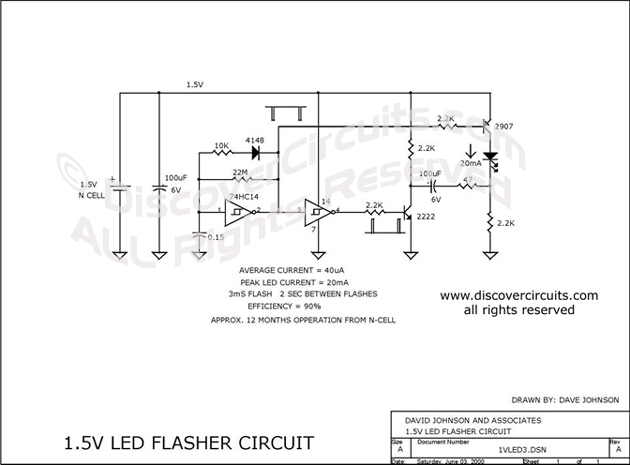

Click on Drawing Below to view PDF version of Schematic

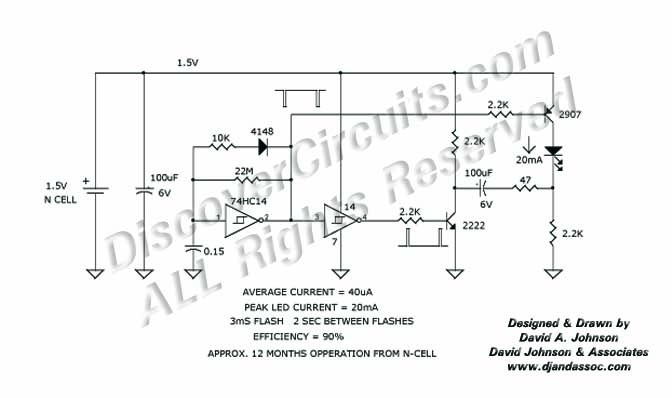

Circuit 1.5V LED Flasher Circuit designed by David Johnson, P.E.
