Universal LED Flasher

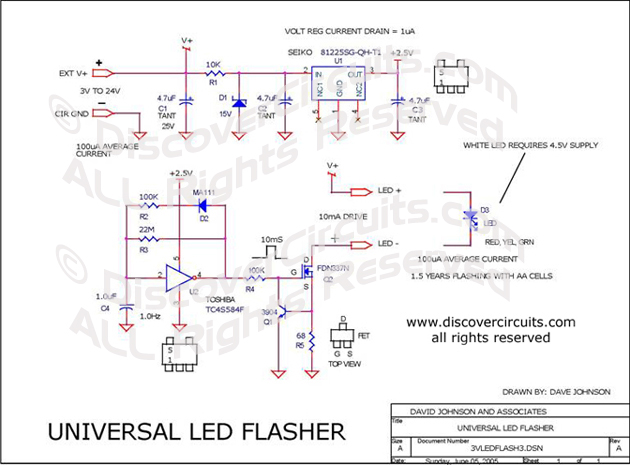

This low power LED flasher circuit draws about 100ua from any DC power supply ranging from 3 volts to 24 volts.  The 1.0Hz 10ms LED pulsed current is held to a constant 10ma


Click on Drawing Below to view PDF version of Schematic

Circuit Universal LED Flasher designed by David Johnson, P.E. (June 5, 2005)
