More  Light Detectors   Transimpedance Amplifiers

1uS LIGHT PULSE RECEIVER PLUS POST AMP


This circuit is designed to detect very weak light pulses lasting 1uS. It uses a tuned LC feedback network to provide high sensitivity while giving high ambient light immunity. A post voltage Amplifier is included with a gain of about X20. The circuit is described in more detail in the receiver section of my Handbook of Optical Through the Air Communications.  Note: The LF357 op Amp is no longer available, this circuit is for reference only.

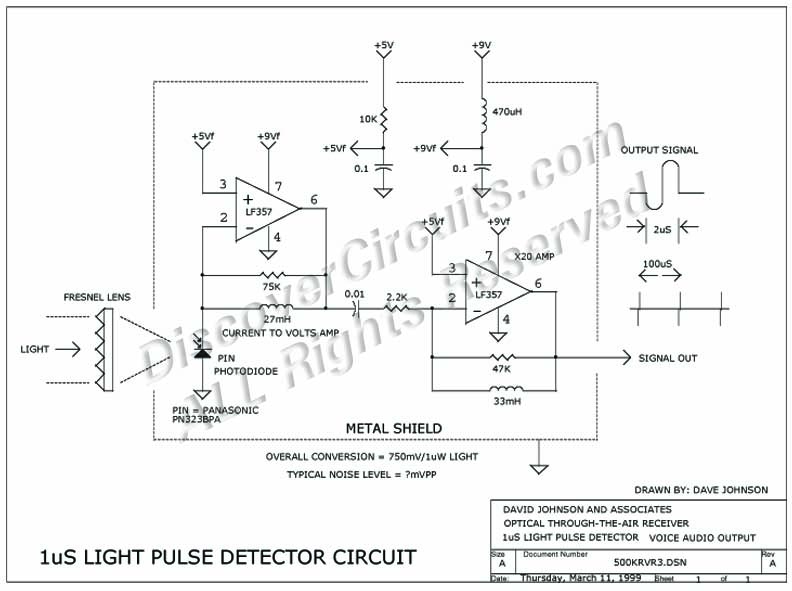

Click on Drawing Below to view PDF version of Schematic

Circuit 1uS Light Pulse Detector Circuit designed by Dave Johnson, P.E. (March 11, 1999)
