Enclosure = 1.0W x 1.0L x
0.75H
Electrical Connections = 5 screw
barrier type terminal block
Supply
voltage range = 3v - 30v
Typical Supply Current = 4ua @ 3v-15v, 1.5mA @ 30v
Minimum Momentary Output Switch Pulse
Length = 100mS
Minimum Capacitance change duration for
switch detection = 50mS
Minimum
Capacitance change needed to activate switch = 1pF
Maximum
Input Capacitance = 50pF

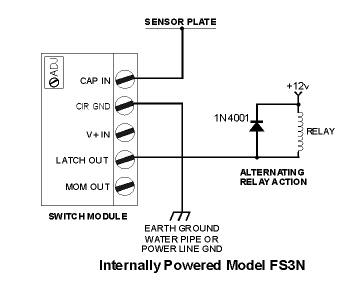

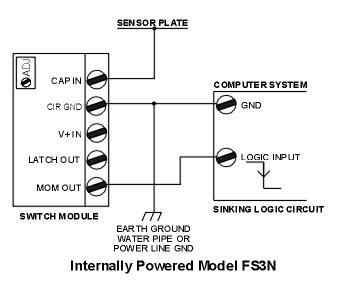

Output Switch = normally open, current
sink, momentary & latch outputs
Maximum Switch Current = 1 amp
Maximum Switch Voltage (sinking output)
30v
Operating Temperature = -40C - +60C
Switch
Life = excess of 10 million operations |
