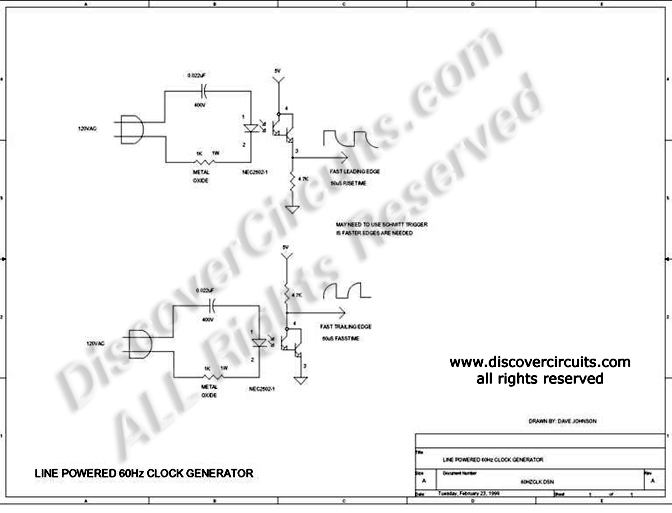

LINE POWERED 60Hz CLOCK GENERATOR
This circuit is connected to the 120vac power line and transfers 60Hz clock pulses to a logic circuit. The optoisolator used provides 5000 volts of isolation between the power line and the logic side of the circuit.


Click on Circuit Below to view PDF of Schematic

Line Powered 60Hz Clock Generation designed by Dave Johnson, P.E. (Feb 23, 1998)
