CHARGE PUMP EFFICIENTLY DIVIDES SUPPLY VOLTAGE


This circuit uses a few FETs and logic devices to down convert a DC voltage to about one half its value.

Click on Circuit Below to view PDF of Schematic

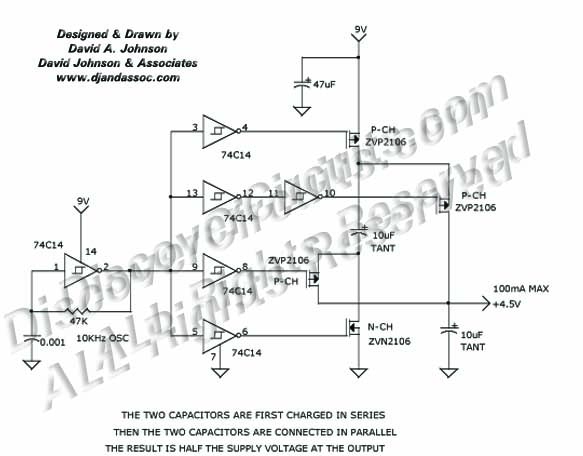

charge Pump voltage divider , Circuit designed by David A. Johnson, P.E. (July 8, 2000)
