Power Loss Indicator

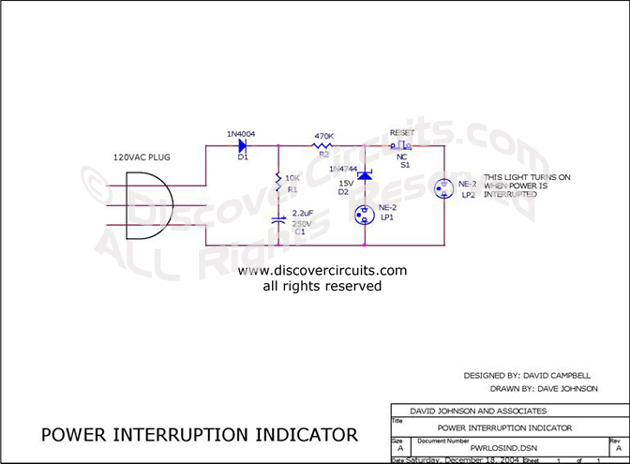

Dave Campbell designed this clever circuit.  It uses two neon lamps to indicate if power to a 120vac appliance had been interrupted.

Click on Drawing Below to view PDF version of Schematic

Circuit Power Interruption Indicator designed by David Campbell. (Dec 18, 2004)
