Solar PV cell Test Fixture


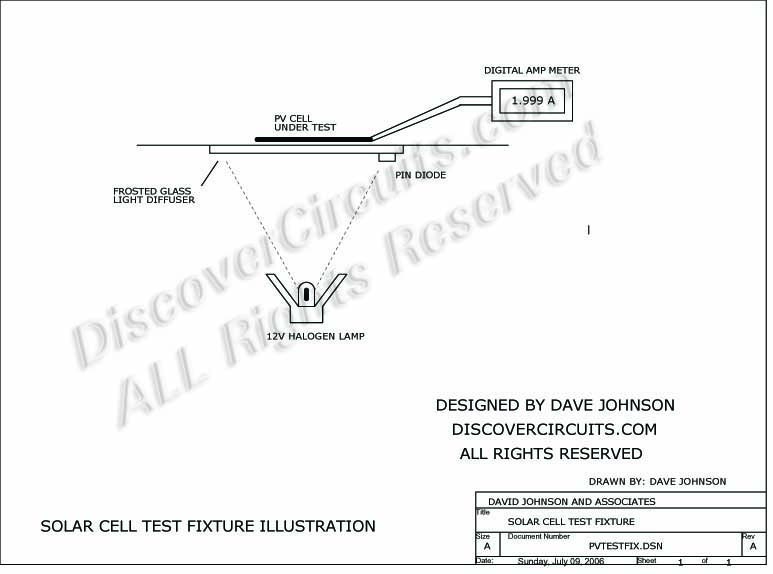

This is an illustration of a test fixture, which can be used to test individual solar cells for short circuit current.  Using a PIN photo diode and a control circuit, the solar cells can be tested under constant light level conditions. A halogen incandescent lamp is used as the light source

Click on Drawing Below to view PDF version of Schematic

Circuit Solar Cell Test Fixture designed by David Johnson, P.E. (June 30, 2006)
