Modified LED Night Light
David A. Johnson, P.E.

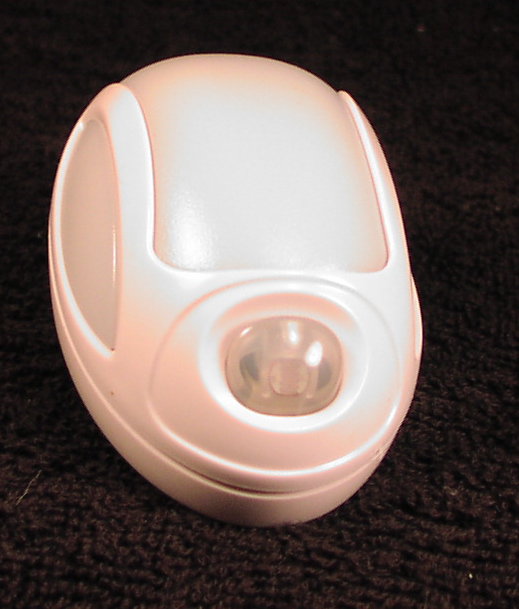

Night Light - Front View - Looks like a mouse

Night Light Front

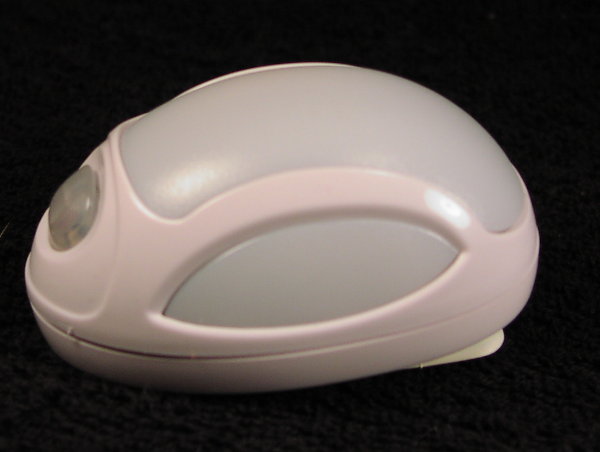

Night Light Side View

Night Light Side

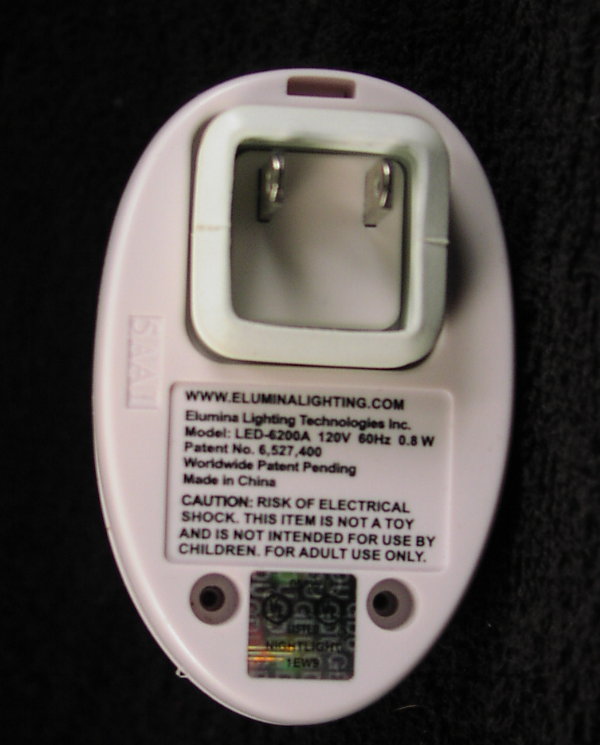

Night Light Bottom View

Night Light Back

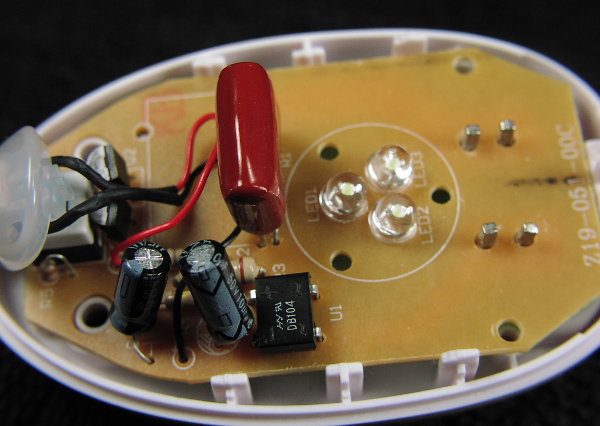

Night Light inside with 3 LEDs

Night Light Inside with 3 LEDs

Night light insidewith 10 surface mount LEDs
Night light Inside
with 10 Surface Mount LEDs

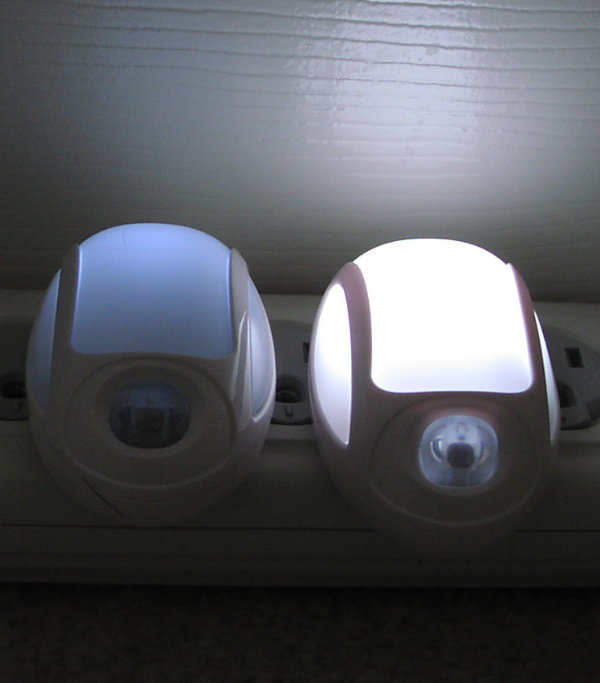

Old light on left, modified light on right
Old light on left,
modified light on right

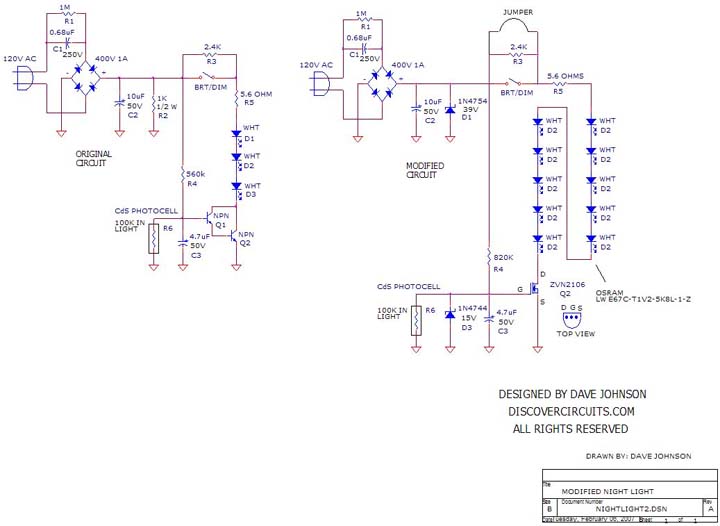

The circuit uses the classic series capacitor method to produce a current limiting LED driver, powered from the AC line.  The series capacitor forms a constant current source and will route the same amount of current through the parts, even if 3 or 30 LEDs were used in series.  This type of circuit made it much easier to insert 10 series wired LEDs instead of the three original devices.  I also switched from a NPN darlington driver circuit to a single n-channel FET. This made it easier to select the right resistor value to turn off the light in the day.  I set the required CdS cell resistance at about 100K, so anything less than that in resistance should keep the LEDs turned off.  I did have to change the resistor R2 to a 39v zener diode do limit the peak voltage across the filter capacitor C1, when the LEDs are turned off during daylight.

 Shake Flashlight Schematic
