More  Bistable Multivibrator or Flip/Flop Circuits

D-FLIP/FLOP ONE SHOT CIRCUIT

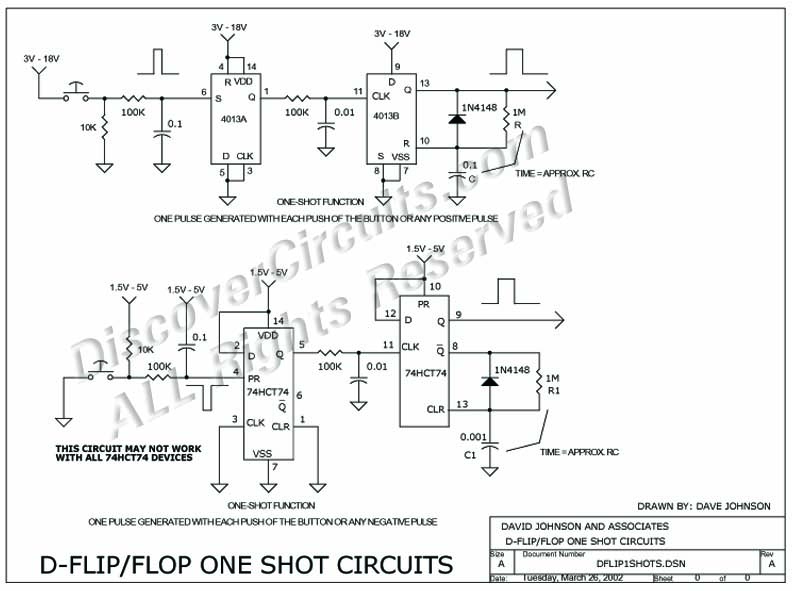

Yes you can use cheap D flip/flop logic circuits as nice one-shot pulse generators.  This schematic shows how the popular CD4013 and the CD74HC74 can be used to generate pulses ranging from nanoseconds to seconds.

Click on Drawing Below to view PDF version of Schematic

Circuit D-FLIP/FLOP ONE SHOT CIRCUIT designed by Dave Johnson, P.E. (Mar 30, 2003)
