175KHz INDUCTIVE PULSE RECEIVER

The receiverís six inch diameter coil detects the ring signal from the above transmitter and use a single NPN transistor to provided enough Amplification for the signal to be easily viewed on an oscilloscope.

Click on Circuit Below to view PDF of Schematic


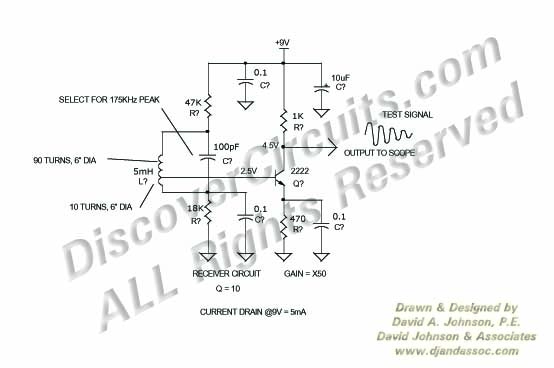

175KHz Ring Receiver , Circuit designed by David A. Johnson, P.E. (June 20, 2000)
