FINGER TOUCH ACTIVATED SWITCH

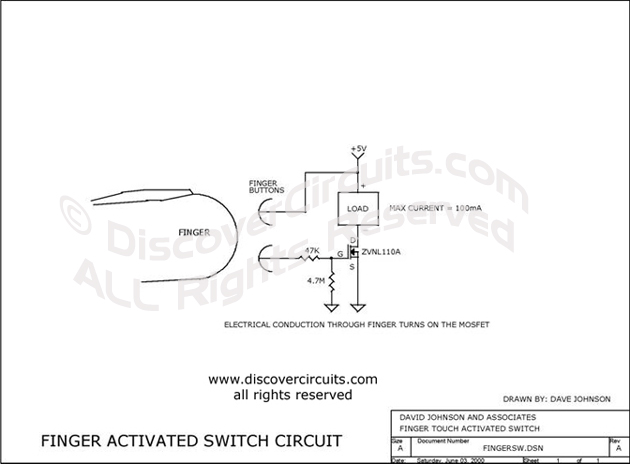

It does not get any easier if you want a solid state switch that is activated by the touch of a finger. Two small metal pins route voltage through the finger skin to a MOSFET switch. The circuit is great for situations where a membrane type mechanical switch is not desired.

Click on Drawing Below to view PDF version of Schematic

Circuit Finger Activated Switch Circuit designed by Dave Johnson, P.E. (June 3, 2000)
