VERY LOUD BEEPER CIRCUIT

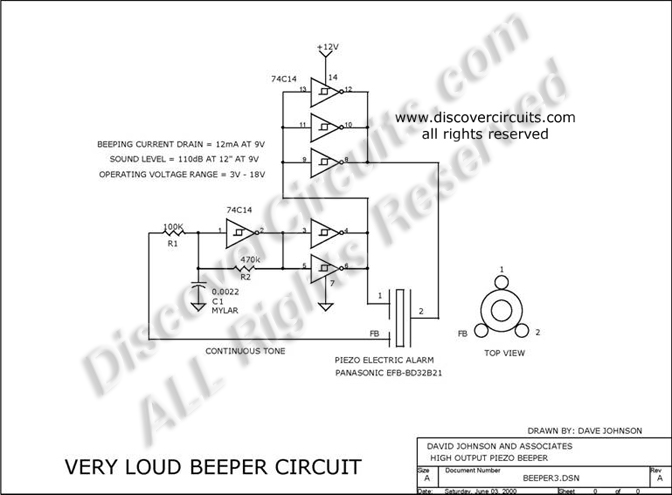

This circuit generates a continuous tone instead of a pulsing one. The circuit delivers about 110db (12 inches away) from a 9v battery using a single inexpensive C-MOS IC. An off-the-shelf piezoelectric beeping device is driven at resonance to insure maximum efficiency.

Click on Circuit Below to view PDF of Schematic

Very Loud Beeper Circuit designed by Dave Johnson, P.E. (June 3, 2000)
