Sump Pump Controller, Corrosion Resistant
All materials and content contained on this page are the exclusive intellectual property of Andrew R. Morris and
may not be copied, reproduced, distributed or displayed without his express written permission.

Every sump pump controller that I have seen on the web uses DC to sense the water.  This approach is simple, but eventually causes corrosion of he sensor probes due to the electrolysis.  The probes than have to be periodically cleaned or replaced.  This circuit solves the problem by using AC to sense the water in the sump.

Click for the remaining Circuit Description

More:  Water-Level Monitors Liquid-Level Sensing CircuitsWater Sensing Circuits

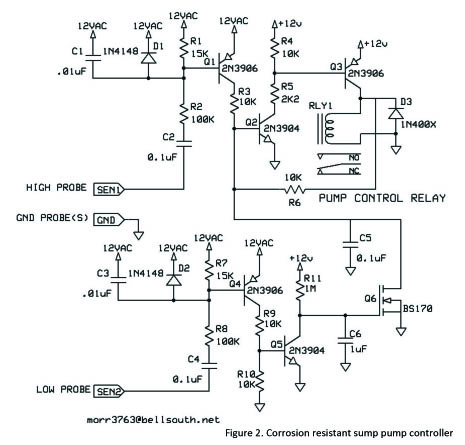

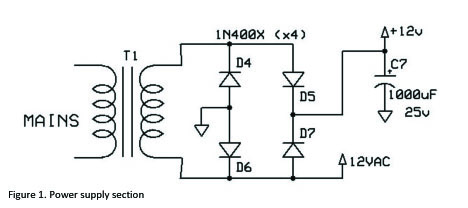

Click on Schematic to view PDF
